Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center

Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center
Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center

Large Image :  Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center

Product Details:
Place of Origin: China
Model Number: SC/UPC~SC/UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional Packing+Carton
Delivery Time: 2-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000pcs/day
Detailed Product Description
Product Name: Fiber Optic Patch Cord Model No.: SC/UPC~SC/UPC
Type: Single Mode/Simplex Insertion Loss: ≤0.2dB
Return Loss: ≥55dB Product Status: Stock
Warranty: 1 Year
High Light:

Simplex Single Mode Fiber Cable

,

Fiber Cable SC UPC

SC/UPC~SC/UPC Single Mode Simplex Fiber Optic Jumper Optical Fiber Patch OS2 Pigtail





Parameters

Interface model:SC/UPC~SC/UPC Mode:single-mode
Insertion loss:≤0.2dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

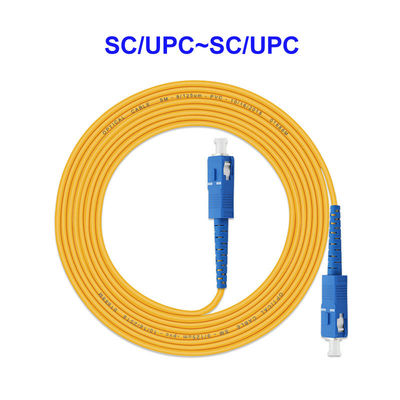

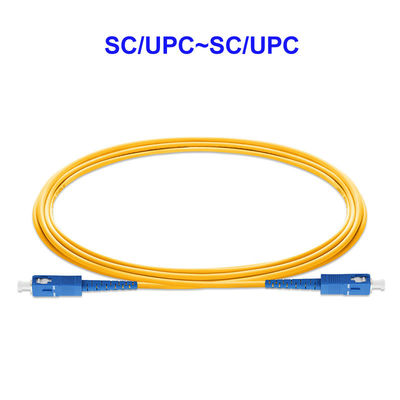

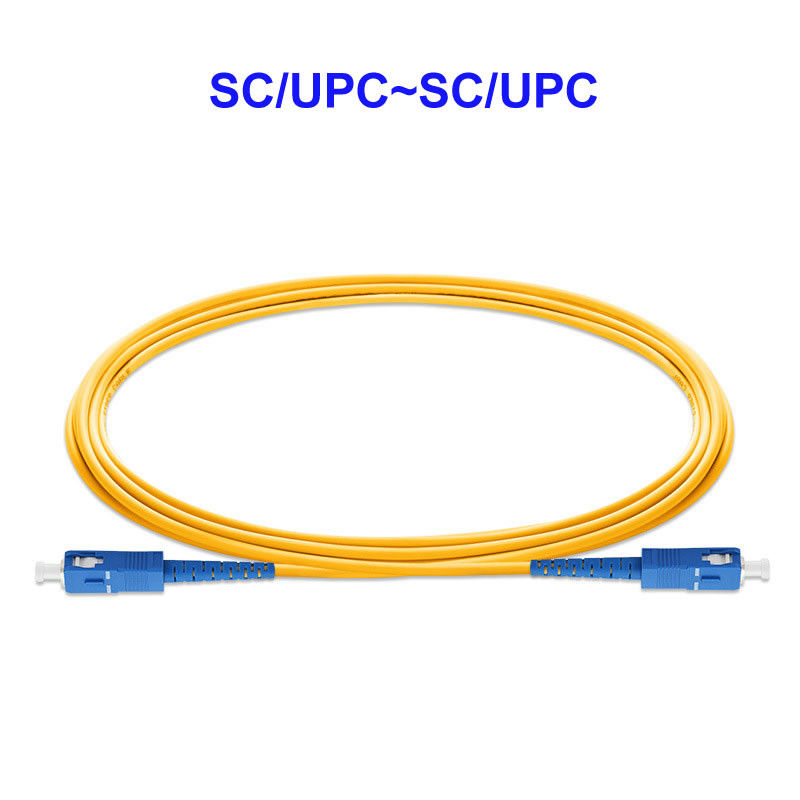

Product Image

Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center 0



OEM/ODM Service

Offer OEM/ODM Service

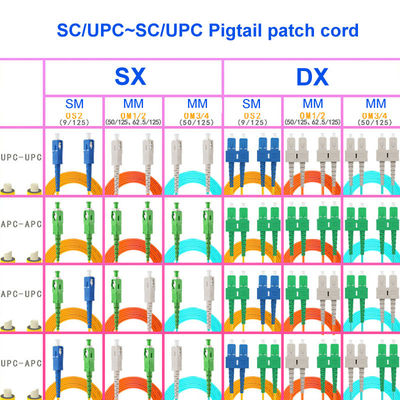

    Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center 1
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25℃to +70℃ 2cycles <0.2dB <0.2dB
High temperature test +80℃,2hours
Low temperature test -40℃,2hours
Warm test +40℃90~95%RH,2hours





FAQ

  • Q: Can I get any discount?
    A: Yes, price could be negotiated based on the quantity.

  • Q: What is the lead time?
    A: Normally we will send the goods within 2-3 working days after received payment.

  • Q: Can you send to my forwarder?
    A: Yes sure, no problem.

  • Q: How do you ship the goods?
    A: We usually ship by DHL,UPS,FedEx or TNT.

  • Q: What is your warranty period?
    A: We offer warranty 1 year for all new products. Generally speaking, there are not exist quality problems with our strictly quality
    supervision.



Our Services & Guarantee
1. Brand new.
2. OEM/ODM is available.
3. 100% through quality test and aging test.
4. Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center 2

Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center 3
Simplex Single Mode Fiber Cable SC UPC SC UPC For Data Center 4
