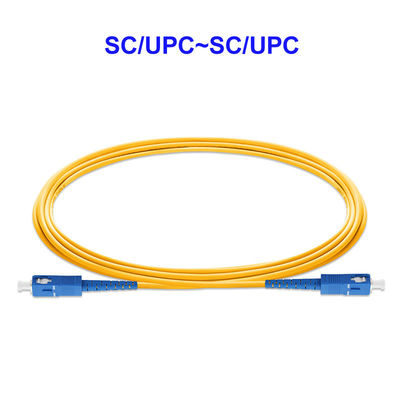

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC
Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC

Large Image :  Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC

Product Details:
Place of Origin: China
Model Number: SC/UPC~SC/UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard Packing
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Part Number: SC/UPC~SC/UPC Mode: Single-mode
Number Of Cores: 1 Insertion Loss: ≤0.2dB
Return Loss: ≥55dB Fiber Type: OS2
Outer Sheath Material: PVC(default),LSZH,OFNP Test Wavelength: 1310nm~1550nm
High Light:

Fiber Optic Pigtail Single Mode

,

Fiber Optic Pigtail Single Core

,

Carrier Grade sc single mode pigtail

Optical Fiber Cable SC UPC SC UPC Single-Mode Single-Core Carrier-Grade OS2 Pigtail

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 0



Prodcuct Parameters
Interface model:SC/UPC~SC/UPC Mode:single-mode
Insertion loss:≤0.2dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm



Offer OEM/ODM Service

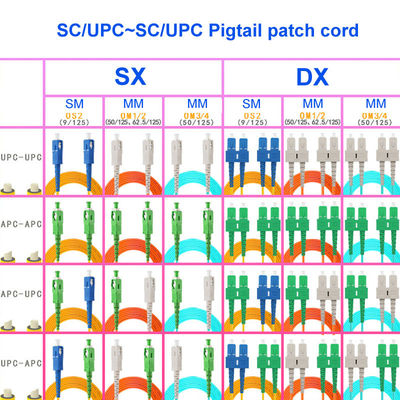

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 1
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours

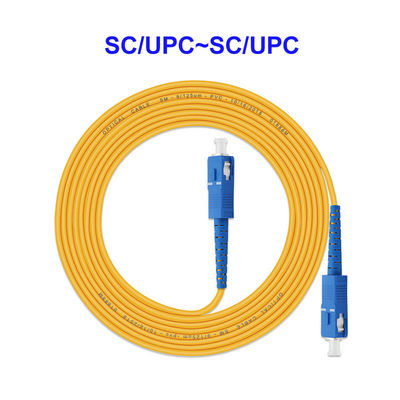

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 2

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 3

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 4

Carrier Grade Fiber Optic Pigtail Single Mode Single Core SC UPC SC UPC 5
