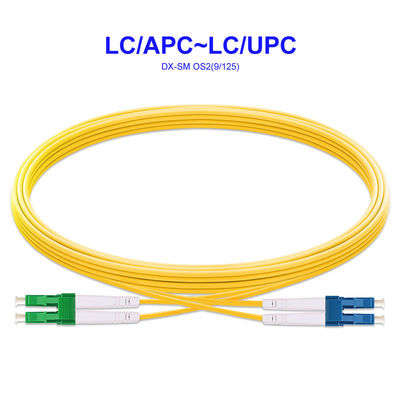

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC
OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC

Large Image :  OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC

Product Details:
Place of Origin: China
Brand Name: Factory Supplying OEM/ODM
Certification: CE
Model Number: LC/APC~LC/UPC OS2(9/125µm)
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000Pieces per Day
Detailed Product Description
Model: LC/APC~LC/UPC Mode/Cores: Single-mode/ 2 Core
Length: 1M-100M Customizable OEM/ODM: YES
Shipping: TNT,DHL,UPS,FEDEX Or EMS Product Name: Optical Fiber Jumper
High Light:

OS2 Fiber Optic Pigtail

,

Fiber Optic Pigtail Single Mode

,

LC UPC Pigtail



LC/APC-LC/UPC OS2(9/125µm) optical cable pigtail single-mode dual-core Optical fiber cable carrier-grade for LAN CATV



Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

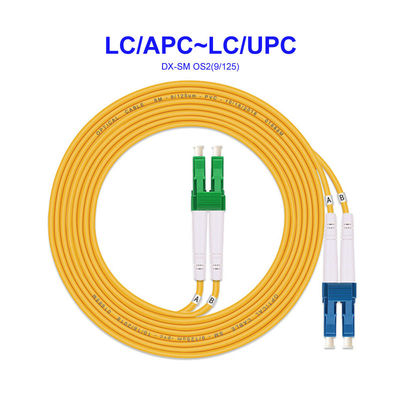

Product Picture:

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 0

Quick Specs:

Prodcuct Parameters
Interface model:LC/APC~LC/UPC Mode:single-mode
Insertion loss:≤0.3dB Number of cores:DX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

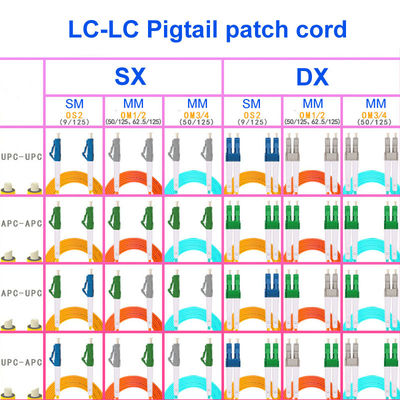

Product Profile:

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 1



Offer OEM/ODM Service:



Offer OEM/ODM Service
OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 2
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours



OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 3

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 4

Product connector introduction:

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 5

Common Connectors:

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 6



About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

OS2 Fiber Optic Pigtail Single Mode Dual Core LC APC To LC UPC 7
