1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails
1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails

Large Image :  1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails

Product Details:
Place of Origin: China
Brand Name: Factory Supplying OEM/ODM
Certification: CE
Model Number: FC/UPC~SC/UPC OS2(9/125µm)
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: US$1.3/pcs (3M, ≤0.3DB)
Packaging Details: Standard Packing
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000Pieces per Day
Detailed Product Description
Model: FC/UPC~SC/UPC Mode/Cores: Single-mode/ Single Core
Length: 1M-100M Customizable OEM/ODM: YES
Shipping: TNT,DHL,UPS,FEDEX Or EMS Product Name: Optical Fiber Jumper
High Light:

100M Single Mode Fiber Optic Cable

,

1M Single Mode Fiber Optic Cable

,

FC UPC Fibre Optic Pigtails



Good core FC/UPC~SC/UPC single-mode single core Optical fiber jumper carrier-grade OS2 9/125µm fiber optic pigtail cable



Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.



Product Picture:

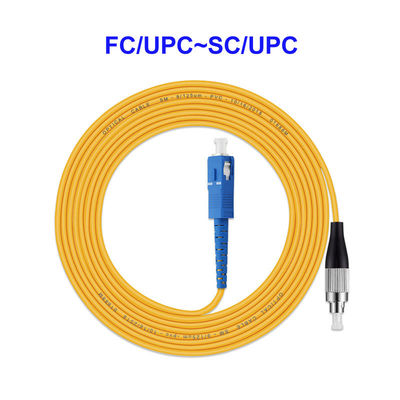

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 0

Quick Specs:

Prodcuct Parameters
Interface model:SC/UPC~FC/UPC Mode:single-mode
Insertion loss:≤0.3dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm



Product Profile:

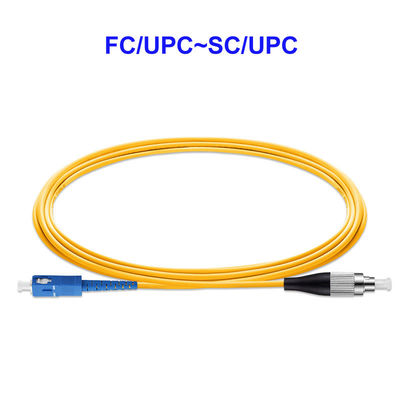

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 1



Offer OEM/ODM Service:



Offer OEM/ODM Service

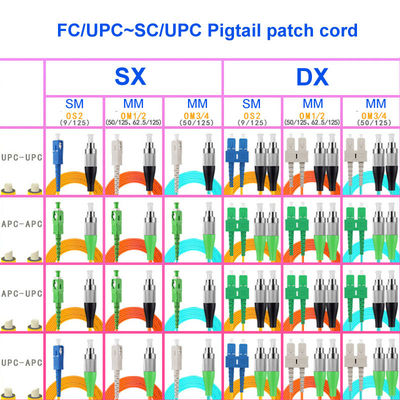

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 2
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours



1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 3

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 4

Product connector introduction:

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 5

Common Connectors:

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 6



About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

1M 100M Single Mode Fiber Optic Cable , FC UPC SC UPC Single Core Fibre Optic Pigtails 7
