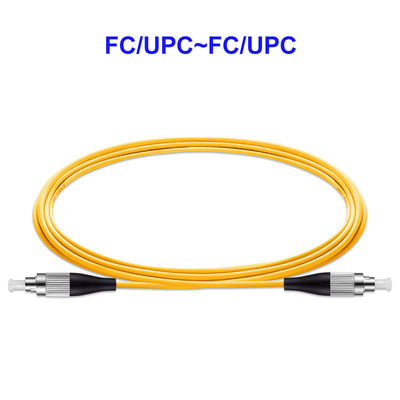

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord
Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord

Large Image :  Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord

Product Details:
Place of Origin: China
Brand Name: Factory Supplying OEM/ODM
Certification: CE
Model Number: FC/UPC~FC/UPC OS2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: US$1.1/pcs (3M, ≤0.3DB)
Packaging Details: Standard Packing
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000Pieces per Day
Detailed Product Description
Part No.: FC/UPC~FC/UPC Mode/Cores: Single-mode/ Single Core
Length: 1M-100M Customizable OEM/ODM: YES
Shipping: TNT,DHL,UPS,FEDEX Or EMS Product Name: Single-mode SX Optical Fiber Jumper
High Light:

Single Core Single Mode Fiber Pigtails

,

FC UPC Optical Jumper Cord

,

Single Mode Fiber Pigtails FC UPC



FC/UPC~FC/UPC single-mode single-core Optical fiber jumper carrier-grade OS2 fiber optic pigtail customization



Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

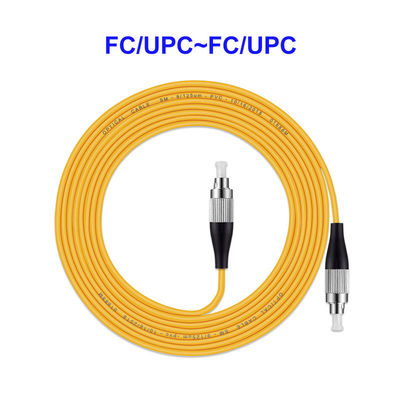

Product Picture:

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 0

Quick Specs:

Prodcuct Parameters
Interface model:FC/UPC~FC/UPC Mode:Single Mode
Insertion loss:≤0.2dB Number of cores:Single Core
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

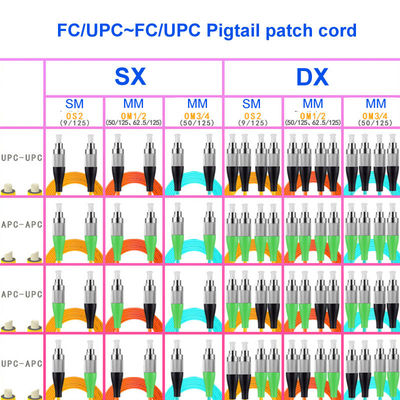

Product Profile:

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 1



Offer OEM/ODM Service:



Offer OEM/ODM Service
Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 2
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours



Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 3

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 4

Product connector introduction:

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 5

Common Connectors:

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 6



About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

Single Core Single Mode Fiber Pigtails FC UPC Optical Jumper Cord 7
