Product Details:
Payment & Shipping Terms:
|
| Product Name: | Single-mode 2-core FC/APC Outdoor Waterproof Pigtail | Optical Cable Specification: | OS2 |
|---|---|---|---|
| Connection Head: | SC/LC/FC/ST Optional | Tensile Strength: | 100N |
| Outer Quilt Material: | PVC/LSHZ | Insert Core: | Ceramic |
| Insertion Loss: | ≤0.3db | Return Loss: | UPC≥50db; APC≥60db |
| Mating Times: | >1000 Times | Grinding Method: | UPC/APC |
| Optical Fiber Outer Diameter: | 0.9mm/2mm/3mm | ||
| High Light: | FC APC Optical Fiber Pigtail Cable,LSHZ Optical Fiber Pigtail Cable,OS2 Optical Fiber Patch Cord |
||
Single-Mode 2-Core Waterproof Optical Fiber Pigtail Cable FC/APC SM OS2 Optical Fiber Patch Cord Pigtail Cable
| Name | Single-mode 2-core FC/APC outdoor waterproof pigtail |
| Optical cable specification | OS2 |
| Grinding method | UPC/APC |
| Connection head | SC/LC/FC/ST optional |
| Optical fiber outer diameter | 0.9mm/2mm/3mm |
| Outer quilt material | PVC/LSZH |
| Insert core | ceramic |
| Tensile strength | 100N |
| Working temperature | -40℃—+75℃ |
| Storage temperature | -40℃—+75℃ |
| Insertion loss | ≤0.3db |
| Return loss | UPC≥35db; APC≥60db |
| Mating times | >1000 times |
| Product weight | ≈20G |
| Packing | individually packaged in PE bags |

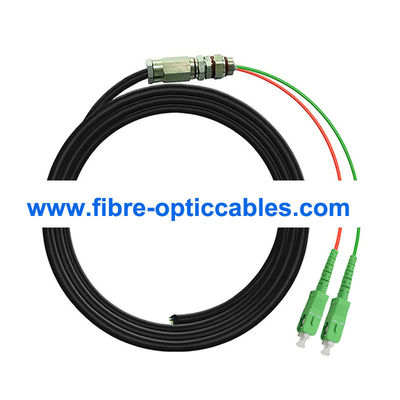

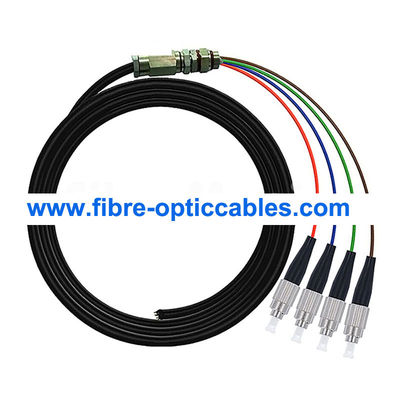

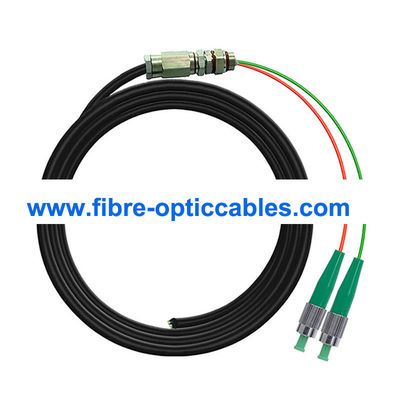

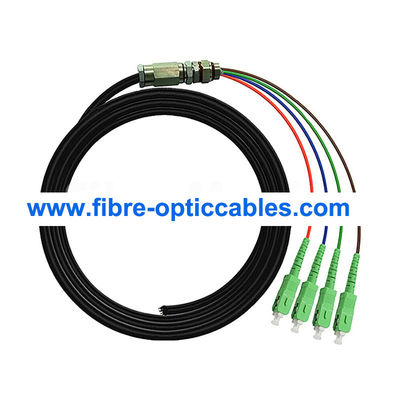

Product Image
Other products
Why Choose us?
Frequently Asked Questions:
Question 1: How long is the service life of the product?
Answer: Up to More than 5 years.
Question 2: Is the value of each jumper 100% tested?
Answer: Every optical fiber patch cord produced by our company is controlled in accordance with the ISO:9001 system, and the final production line is fully inspected to the testing process. The QC quality staff conducts the second sampling inspection of the finished product according to the corresponding rules to ensure that the test data is true and reliable.
Question 3: What should I do if there is a quality problem or there is a problem when using it on the device?
Answer: If confirmed it is the quality problems, not the false majeure or human factors, we will send you the same specifications and models free of charge in the fastest shipping method as soon as possible, so as not to delay the construction period.
