Product Details:
Payment & Shipping Terms:
|
| Product Name: | Single-mode 4-core SC/APC Outdoor Waterproof Pigtail | Optical Cable Specification: | OS2 |
|---|---|---|---|
| Connection Head: | SC/LC/FC/ST Optional | Tensile Strength: | 100N |
| Outer Quilt Material: | PVC/LSHZ | Insert Core: | Ceramic |
| Insertion Loss: | ≤0.3db | Return Loss: | UPC≥50db; APC≥60db |
| Mating Times: | >1000 Times | Grinding Method: | UPC/APC |
| Optical Fiber Outer Diameter: | 0.9mm/2mm/3mm | ||
| High Light: | G652 Waterproof Fiber Optic Cable,Waterproof Fiber Optic Cable LSZH,SC APC Waterproof Fiber Optic Pigtail |
||

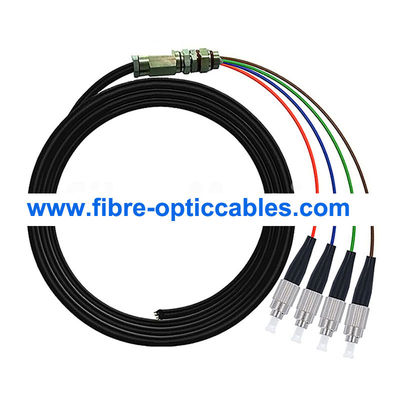

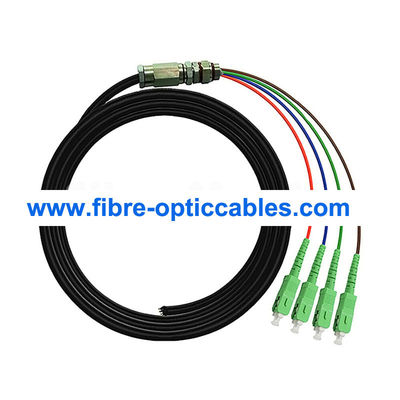

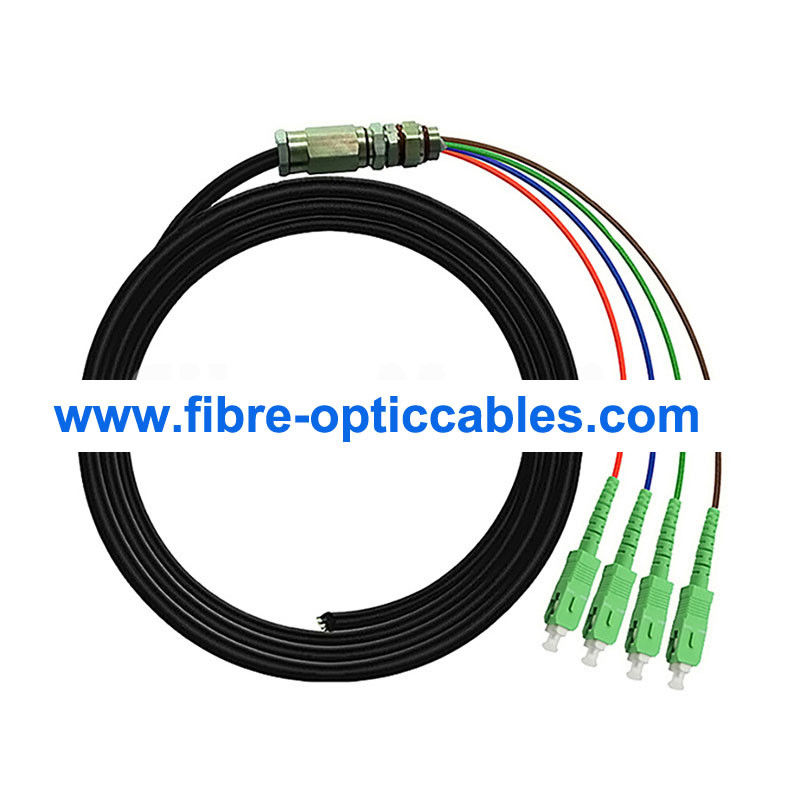

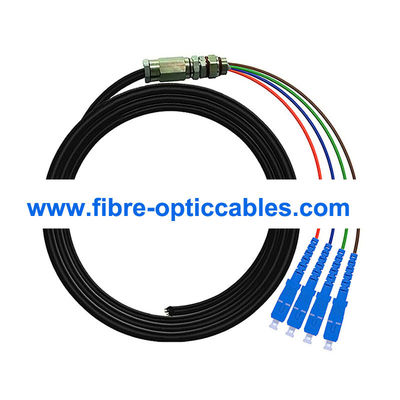

Single Mode 4 Core Waterproof Fiber Optic Pigtail SC/APC G652 Fiber Optic Patch Cord Pigtail Cable
| Name | Single-mode 4-core SC/APC outdoor waterproof pigtail |
| Optical cable specification | OS2 |
| Grinding method | UPC/APC |
| Connection head | SC/LC/FC/ST optional |
| Optical fiber outer diameter | 0.9mm/2mm/3mm |
| Outer quilt material | PVC/LSZH |
| Insert core | ceramic |
| Tensile strength | 100N |
| Working temperature | -40℃—+75℃ |
| Storage temperature | -40℃—+75℃ |
| Insertion loss | ≤0.3db |
| Return loss | UPC≥35db; APC≥60db |
| Mating times | >1000 times |
| Product weight | ≈20G |
| Packing | individually packaged in PE bags |
Other products
Why Choose us?
Frequently Asked Questions:
Question 1: How long is the service life of the product?
Answer: Up to More than 5 years.
Question 2: Is the value of each jumper 100% tested?
Answer: Every optical fiber patch cord produced by our company is controlled in accordance with the ISO:9001 system, and the final production line is fully inspected to the testing process. The QC quality staff conducts the second sampling inspection of the finished product according to the corresponding rules to ensure that the test data is true and reliable.
Question 3: What should I do if there is a quality problem or there is a problem when using it on the device?
Answer: If confirmed it is the quality problems, not the false majeure or human factors, we will send you the same specifications and models free of charge in the fastest shipping method as soon as possible, so as not to delay the construction period.
