Payment & Shipping Terms:
|Product Name:||Single-mode 2-core FC/UPC Outdoor Waterproof Pigtail||Optical Cable Specification:||OS2|
|Grinding Method:||UPC/APC||Connection Head:||SC/LC/FC/ST Optional|
|Optical Fiber Outer Diameter:||0.9mm/2mm/3mm||Outer Quilt Material:||PVC/LSZH|
|Insert Core:||Ceramic||Insertion Loss:||≤0.3db|
|Return Loss:||UPC≥35db; APC≥60db||Mating Times:||>1000 Times|
LSZH Fiber Optic Pigtail,
FC UPC Fiber Optic Pigtail,
Ceramic Core Waterproof Fiber Pigtail

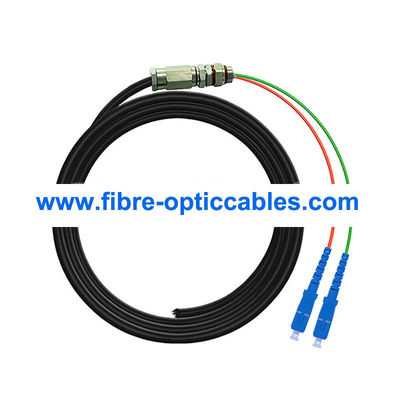

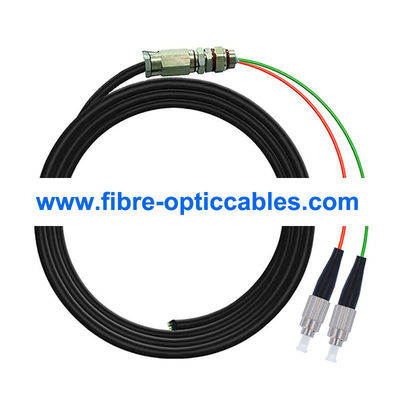

SM FC/UPC Fiber Optic Pigtail Single-Mode 2-Core Outdoor Fiber Optic Cable Waterproof Pigtail
|Name||Single-mode 2-core FC/UPC outdoor waterproof pigtail|
|Optical cable specification||OS2|
|Connection head||SC/LC/FC/ST optional|
|Optical fiber outer diameter||0.9mm/2mm/3mm|
|Outer quilt material||PVC/LSZH|
|Return loss||UPC≥35db; APC≥60db|
|Mating times||>1000 times|
|Packing||individually packaged in PE bags|
Why Choose us?
Frequently Asked Questions:
Question 1: How long is the service life of the product?
Answer: Up to More than 5 years.
Question 2: Is the value of each jumper 100% tested?
Answer: Every optical fiber patch cord produced by our company is controlled in accordance with the ISO:9001 system, and the final production line is fully inspected to the testing process. The QC quality staff conducts the second sampling inspection of the finished product according to the corresponding rules to ensure that the test data is true and reliable.
Question 3: What should I do if there is a quality problem or there is a problem when using it on the device?
Answer: If confirmed it is the quality problems, not the false majeure or human factors, we will send you the same specifications and models free of charge in the fastest shipping method as soon as possible, so as not to delay the construction period.
