| Applicable Connector Type: | MPO | Fiber Type: | Multimode (PC) |
|---|---|---|---|
| Working Wavelength Range: | 850nm, 1300nm | Test Wavelength: | 850nm, 1300nm |
| End Grinding Type: | PC | Insertion Loss: | MPO: Typical Value ≤0.40dB, Maximum Value ≤0.50dB |
| Return Loss: | ≥50dB | Applicable Optical Cable Type: | MPO: Ribbon Or Bundle Optical Cable |
| High Light: | FTTX Adapter Patch Cord,100G SFP Adapter Patch Cord,MPO MTP Multimode Patch Cord |
||

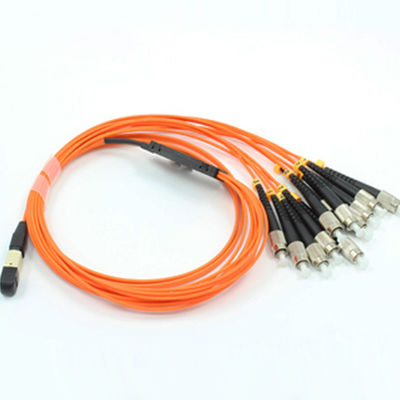

12-core adapter patch cord MPO/FC 2m 12-core multimode fiber optic patch cord MPO/MTP optical cable customize
Brief introduction
MPO (Multi-fiber Push On) is collectively referred to as MT series connectors. The ferrules of the MT series use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face for precise connection with the guide pin (also called PIN pin) , MPO can have 2~12 core designs, up to 24 cores, and 12 core connectors are currently the most used. The compact design of MPO makes it have a large number of cores and small size. It is widely used in the interconnection applications of FTTX, 40/100G SFP, SFP+ and other transceiver equipment in the environment where high-density integrated optical fiber lines are required during the wiring process. Our company can provide a variety of transfer and non-transfer MPO jumpers. There are many types of MPO transfers, including ribbon and bundle. Through the splitter (round or square), it can be transferred out of 2~24 core 0.9 or 2.0 Optical cable branch, the type of connector is specified by the customer, and the length and other requirements are left to the customer's choice. All products comply with Telcordia-GR-326, IEC standards and Rohs requirements.
| Name | MPO/FC12 core ribbon adapter fiber jumper |
| Advantages | Low insertion loss, good interchangeability and pluggability, a wide variety of MPO practices, high-quality ferrules, precise alignment of PIN pins. |
| Applications | Local area network wiring between different buildings of the enterprise, optical link interconnection in optical active equipment, wiring in communication bases, wiring in wiring boxes, optical signal connection in computer rooms of residential quarters, industrial areas, and computer rooms of commercial buildings, and building dense wiring system , Optical fiber communication system, cable television network, telecommunications network, metropolitan area network, wide area network, FTTx. |
| Applicable connector type | MPO |
| Fiber type | Multimode (PC) |
| Working wavelength range | 850nm, 1300nm |
| Test wavelength | 850nm, 1300nm |
| End grinding type | PC |
| Insertion loss | MPO: typical value ≤0.40dB, maximum value ≤0.50dB |
| Return loss | ≥50dB |
| Applicable optical cable type | MPO: Ribbon or Bundle Optical Cable |
| Repeatability | ≤0.10dB |
| Exchangeability | ≤0.20dB |
| Durability | Typical change value after 500 insertions and removals≤0.20dB |
| Vertical pull | ≥120N (except 0.9mm optical cable) or customer requirements |
| Operating temperature | -40℃to +70℃ |
| Storage temperature | -40℃to +85℃ |
How to choose the suitable patch cord?
| Type | Diameter(um) | Fiber Type | 100BASE-FX | 100BASE-SX | 100BASE-LX | 10GBASE | 40GBASE SR4 | 100GBASE SR4 |
| OM1 | 62.5/125 | Multi-mode | 2000M | 275m | 550m | 33m | not support | not support |
| OM2 | 50/125 | Multi-mode | 2000M | 500m | 550m | 82m | not support | not support |
| OM3 | 50/125 | Multi-mode | 2000M | 500m | 550m | 300m | 100m(SR4) | 100m(SR4) |
| OM4 | 50/125 | Multi-mode | 2000M | 500m | 550m | 400m | 150m(SR4) | 150m(SR4) |
| Single mode OS2 | 9/125 | Multi-mode | 2000M | 5km(1310nm) | 5km(1310nm) | 10km(1310nm) | not support | not support |
| PS: The difference between fiber type multimode OM3 and OM4 1. OM4 is developed for VSCEL laser transmission, and supports 10G/S connection transmission distance up to 500M (OM3 is 300M). 2. The effective bandwidth of OM4 mode is more than one more than OM3 3. OM4 jumper is 4700MHz.km, OM3 is only 2000MHz.km. |
||||||||
How to choose PVC, LSZH and OFNP correctly?
Fiber patch cords are currently widely used indoors, such as buildings, work, office parks, campuses, and so on.
So how to choose PVC, LSZH or OFNP outer sheath depends on the environment in which the optical fiber is selected.
PVC outer covering has the characteristics of anti-oxidation and anti-degradation, and is usually used for horizontal operation of wiring center. Good mechanical properties and moderate price.
The outer cover of LSZH has a special flame-retardant coating, and has excellent waterproof safety performance of low smoke, low toxicity and low corrosion. It is usually used for flat ground connection between buildings.
OFNP is the highest grade material and is usually installed in the air return pressurization system used in ventilation ducts or air handling equipment to comply with NFPA fire safety regulations.
Shipping
If order is big,we will use air shipment or sea shipment.
If the quantity of order is not very big ,we could send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS
Packaging & Delivery
Packaging Details:by customer's request
Delivery time:5-10 days
Our Services
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
Why Choose Us:
1.Competitive price.
2.Fast delivery.
3.Longtime warranty.
4.Reliable quality.
5.Professional product and technical support.
6.Prompt answer for any question or inquiry.
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
