|Applicable Connector Type:||MPO||Fiber Type:||Multimode (PC)|
|Working Wavelength Range:||850nm, 1300nm||Test Wavelength:||850nm, 1300nm|
|Insertion Loss:||MPO: Typical Value ≤0.40dB, Maximum Value ≤0.50dB||Applicable Optical Cable Type:||MPO: Ribbon Or Bundle Optical Cable|
MPO LC Optical Fiber Cable,
OM4 Optical Fiber Cable,
2m Mpo Multimode Fiber

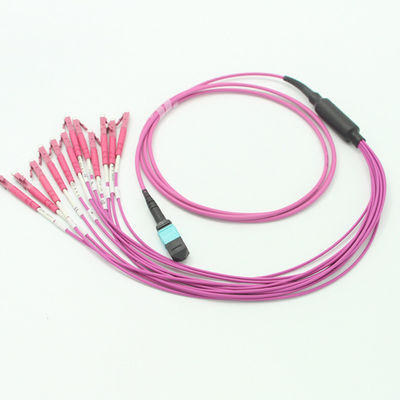

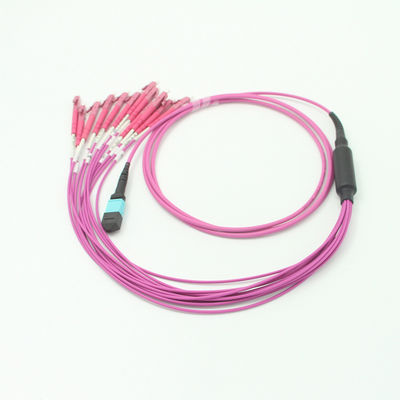

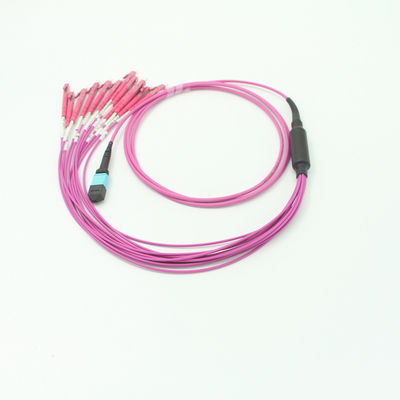

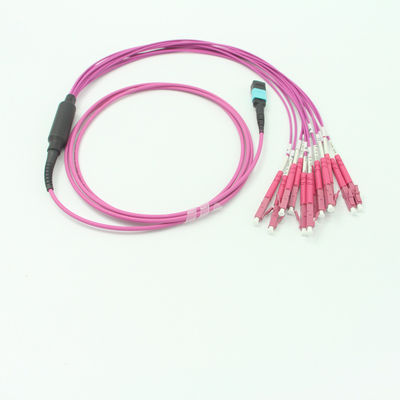

Optical fiber cable MPO/LC 12-core multimode OM4 2m optical fiber jumper MPO
MPO (Multi-fiber Push On) is one of the MT series connectors. The ferrules of the MT series use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule and guide pins (also called PIN pins) for precision For connection, MPO can be designed with 2 to 12 cores, up to 24 cores, and the most commonly used connector is 12 cores. The compact design of MPO makes it have a large number of cores and small size. It is widely used in the interconnection applications of FTTX, 40/100G SFP, SFP+ and other transceiver equipment in the environment where high-density integrated optical fiber lines are required during the wiring process. Our company can provide a variety of transfer and non-transfer MPO jumpers. There are many types of MPO transfers, including ribbon and bundle. Through the splitter (round or square), it can be transferred out of 2~24 core 0.9 or 2.0 Optical cable branch, the type of connector is specified by the customer, and the length and other requirements are left to the customer's choice.
|Name||MPO/LC12 core adapter fiber optic patch cord|
|Advantages||Low insertion loss, good interchangeability and pluggability, a wide variety of MPO practices, high-quality ferrules, precise alignment of PIN pins.|
|Applications||Local area network wiring between different buildings of the enterprise, optical link interconnection in optical active equipment, wiring in communication bases, wiring in wiring boxes, optical signal connection in computer rooms of residential quarters, industrial areas, and computer rooms of commercial buildings, and building dense wiring system , Optical fiber communication system, cable television network, telecommunications network, metropolitan area network, wide area network, FTTx.|
|Applicable connector type||MPO|
|Fiber type||Multimode (PC)|
|Working wavelength range||850nm, 1300nm|
|Test wavelength||850nm, 1300nm|
|End grinding type||PC|
|Insertion loss||MPO: typical value ≤0.40dB, maximum value ≤0.50dB|
|Applicable optical cable type||MPO: Ribbon or Bundle Optical Cable|
|Durability||Typical change value after 500 insertions and removals≤0.20dB|
|Vertical pull||≥120N (except 0.9mm optical cable) or customer requirements|
|Operating temperature||-40℃to +70℃|
|Storage temperature||-40℃to +85℃|
How to choose the suitable patch cord?
|Type||Diameter(um)||Fiber Type||100BASE-FX||100BASE-SX||100BASE-LX||10GBASE||40GBASE SR4||100GBASE SR4|
|OM1||62.5/125||Multi-mode||2000M||275m||550m||33m||not support||not support|
|OM2||50/125||Multi-mode||2000M||500m||550m||82m||not support||not support|
|Single mode OS2||9/125||Multi-mode||2000M||5km(1310nm)||5km(1310nm)||10km(1310nm)||not support||not support|
|PS: The difference between fiber type multimode OM3 and OM4
1. OM4 is developed for VSCEL laser transmission, and supports 10G/S connection transmission distance up to 500M (OM3 is 300M).
2. The effective bandwidth of OM4 mode is more than one more than OM3
3. OM4 jumper is 4700MHz.km, OM3 is only 2000MHz.km.
How to choose PVC, LSZH and OFNP correctly?
Fiber patch cords are currently widely used indoors, such as buildings, work, office parks, campuses, and so on.
So how to choose PVC, LSZH or OFNP outer sheath depends on the environment in which the optical fiber is selected.
PVC outer covering has the characteristics of anti-oxidation and anti-degradation, and is usually used for horizontal operation of wiring center. Good mechanical properties and moderate price.
The outer cover of LSZH has a special flame-retardant coating, and has excellent waterproof safety performance of low smoke, low toxicity and low corrosion. It is usually used for flat ground connection between buildings.
OFNP is the highest grade material and is usually installed in the air return pressurization system used in ventilation ducts or air handling equipment to comply with NFPA fire safety regulations.
