Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Patch Cord | Model No.: | FC/APC~FC/APC |
|---|---|---|---|
| Colour: | Orange | Type: | Multimode/Duplex |
| Insertion Loss: | ≤0.3dB | Return Loss: | ≥35dB |
| Product Status: | Stock | Warranty: | 1 Year |
| High Light: | Orange Multimode Fiber Optic Cable,Duplex Fiber Optic Patch Cable,Multimode Fiber Optic Cable FC APC |
||
Multimode Duplex Orange Fiber Optic Cable Jumper FC/APC~FC/APC Optical Patch Cord FC Connectors
Parameters
| Interface model:FC/APC~FC/APC | Mode:Multi-mode |
| Insertion loss:≤0.3dB | Number of cores:DX |
| Return loss:≥35dB | Ferrule type:Class A ceramic ferrule |
| Reliability:≤0.2dB | Operating temperature:'-40℃to +85℃ |
| Repeatability:≤0.1dB | Fiber type:OM1(default),OM2 |
| Tensile strength:45KG | Outer sheath material:PVC(default),LSZH,OFNP |
| Tensile strength:≥200N | Test wavelength:850nm~1300nm |
| Mating times:≥1000times | Cable outer length:0.9mm,2.0mm(default),3.0mm |
| Minimum bending radius:38mm | Optical fiber specifications:50/125µm,62.5/125µm |

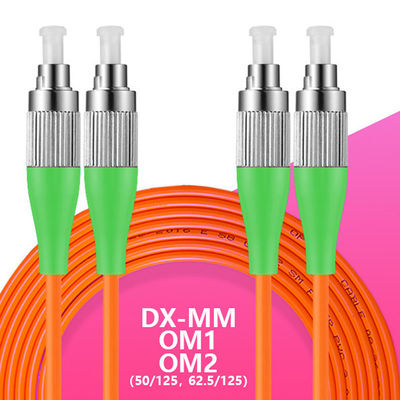

Product Image

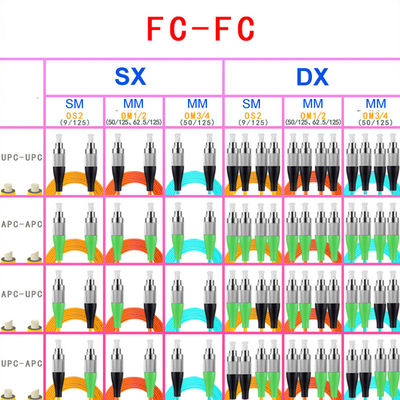

OEM/ODM Service
| Offer OEM/ODM Service | ||||||
| |
||||||
| 1 | Connector A | SC | FC | LC | ST | ... |
| 2 | Grinding type A | PC,UPC,APC | ||||
| 3 | Connector B | SC | FC | LC | ST | ... |
| 4 | Grinding type B | PC,UPC,APC | ||||
| 5 | Fiber diameter | 0.9MM,2.0MM,3.0MM... | ||||
| 6 | Fiber length | 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M... | ||||
| 7 | Outer sheath material | PVC,LSZH,OFNP | ||||
| 8 | Transmission mode | SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125- OM3,MM50/125-OM4... |
||||
| 9 | Number of working cores | SX, DX | ||||
| 10 | Fiber type | G652D,G657A1,G657A2... | ||||
| Item | Test Conditions | SM | MM | ||
| Optical properties | Insertion loss | upc | SM:1310-1550nm | ≤0.2dB | ≤0.3dB |
| MM:850-1300nm | |||||
| apc | 1310-1550nm | ≤0.3dB | |||
| Return loss | upc | SM:1310-1550nm | ≥55dB | ≥35dB | |
| MM:850-1300nm | |||||
| apc | 1310-1550nm | ≥65dB | |||
| Mechanical properties | Impact test | Height 1.8,8times | <0.1dB | <0.1dB | |
| Vibration test | 10~60HZ,1mmFull amplitude | ||||
| Plug life | ≥1000times | ||||
| tensile strength | >100N | ||||
| Pressure test | 45kg | ||||
| Environmental characteristics | High and low temperature cycle test | -25℃to +70℃ 2cycles | <0.2dB | <0.2dB | |
| High temperature test | +80℃,2hours | ||||
| Low temperature test | -40℃,2hours | ||||
| Warm test | +40℃90~95%RH,2hours | ||||
FAQ
Q: Can I get any discount?
A: Yes, price could be negotiated based on the quantity.
Q: What is the lead time?
A: Normally we will send the goods within 2-3 working days after received payment.
Q: Can you send to my forwarder?
A: Yes sure, no problem.
Q: How do you ship the goods?
A: We usually ship by DHL,UPS,FedEx or TNT.
Q: What is your warranty period?
A: We offer warranty 1 year for all new products. Generally speaking, there are not exist quality problems with our strictly quality supervision.
Our Services & Guarantee
1. Brand new.
2. OEM/ODM is available.
3. 100% through quality test and aging test.
4. Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.
