Product Details:
Payment & Shipping Terms:
|
Product Rate: | 40Gbps | Type: | QSFP+ |
---|---|---|---|
Medium: | SMF | Port: | MPO/LC |
Distance: | 0.15KM 0.3KM 2KM 10KM 40KM | OEM/ODM: | Yes |
Product Name: | 40G QSFP+ MPO/LC Optical Module | Name: | Multi-mode/single-mode Fiber Module |
High Light: | QSFP+ 40G Gigabit Fiber Transceiver,Gigabit Fiber Transceiver MPO LC |
40G optical module QSFP+ multi-mode/single-mode MPO/LC optical fiber module LR4 compatible with Huawei H3C Ruijie Cisco
Quick Specs
40G optical module QSFP+ multimode single mode MPO/LC optical fiber module LR4 compatible with Huawei H3C Ruijie H3C | ||||||
Product Name | QSFP+40G optical module | |||||
Product rate | 40Gbps | |||||
Type | QSFP+ | |||||
Transmission medium | SMF | |||||
Operating Voltage | 3.3V | |||||
Working Temperature | Commercial grade:‘-5~-70°C; industrial grade:‘-40~-85°C (Default commercial grade, pls contact us if u need industrial grade) |
|||||
DDM | With DDM digital diagnosis function |
Transmission Distance | 0.15KM | 0.3KM | 2KM | 2KM |
Product Model | QSFP-40G-SR4 | QSFP-40G-CSR4 | QSFP-40G-PIR4 | QSFP-40G-IR4 |
Wavelength | 850NM | 850NM | 1264-1337NM CWDM | 1264-1337NM CWDM |
Optical Power(dbm) | -7.6~0.5 | -7.6~1 | -7~2.3 | -7~2.3 |
Allowable attenuation value | -9.5 | -9.9 | -11.5 | -11.5 |
Laser type | VCSEL | VCSEL | DFP | DFB |
Interface Type | MPO | MPO | MPO | LC |
Transmission Distance | 10KM | 10KM | 40KM |
Product Model | QSFP-40G-PLR4 | QSFP-40G-LR4 | QSFP-40G-ER4 |
Wavelength | 1264-1337NM CWDM | 1264-1337NM CWDM | 1264-1337NM CWDM |
Optical Power(dbm) | -7~2.3 | -7~2.3 | -2.5~4.5 |
Allowable attenuation value | -13.5 | -13.5 | -19 |
Laser type | DFB | DFB | DFB |
Interface Type | MPO | LC | LC |

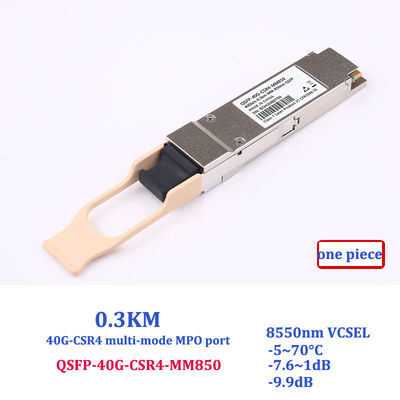

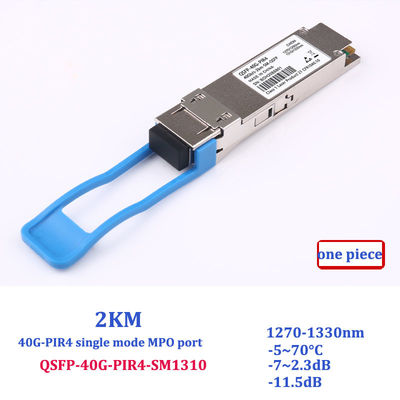

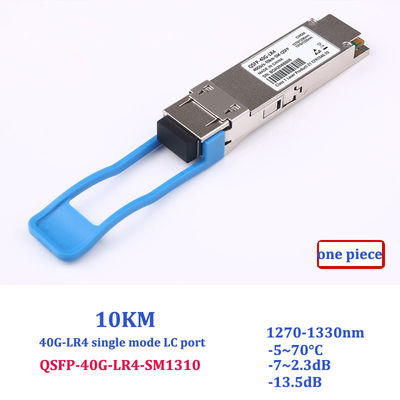

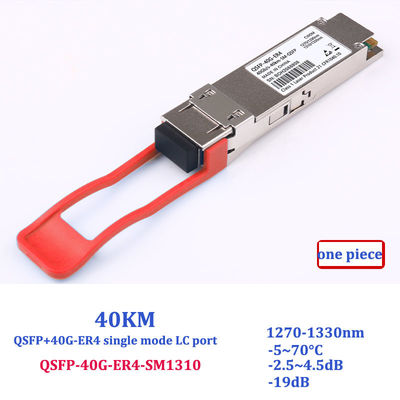

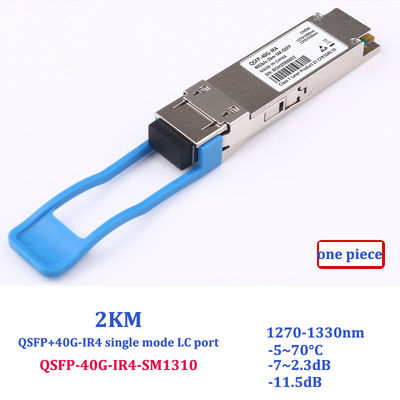

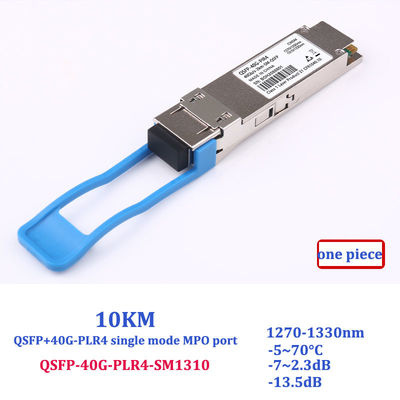

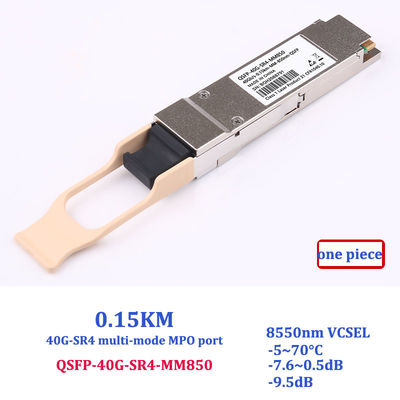

Product Image
Why Choose Us
1. Fully Compatible: compatiable with all major brand equiment.
2. 100% factory verification: passed test verification before shipping.
3. Fast delivery: large inventory ready to ship.
4. OEM/ ODM service: Free OEM/ ODM service.
5. High quality: imported chips, high performance, low power consumpution to ensure stable and fast transmission of signals, more stable
FAQ
Q: What compatible we could do?
A: Nearly all compatible we can make,please let us know the switch type you use when you send us an order, or we will send you a neutral type.
Q: Can I get any discount?
A: Yes, price could be negotiated based on the quantity.
Q: What is the lead time?
A: Usual need 2-3 days lead time. For big quantity and special compatibility products,please check with our sales representative.
Q: What is your warranty period?
A: We offer warranty 1 year for the fiber optic products. Generally speaking, there are not exist quality problems with our strictly quality supervision.
Q: How do you ship the goods?
A: We usually ship by DHL,UPS,FedEx or TNT.
