FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss
FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss

Large Image :  FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss

Product Details:
Place of Origin: China
Model Number: FC/UPC~SC/UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard Packing
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Part Number: FC/UPC~SC/UPC Mode: Single-mode
Number Of Cores: 2 Insertion Loss: ≤0.3dB
Return Loss: ≥55dB Fiber Type: OS2
Outer Sheath Material: PVC(default),LSZH,OFNP Test Wavelength: 1310nm~1550nm
High Light:

SC UPC Single Mode Fiber Optic Cable

,

Single Mode Fiber Optic Cable 55dB

Optical Fiber Cable FC UPC SC UPC Single-Mode 2 Core Carrier-Grade OS2 Pigtail

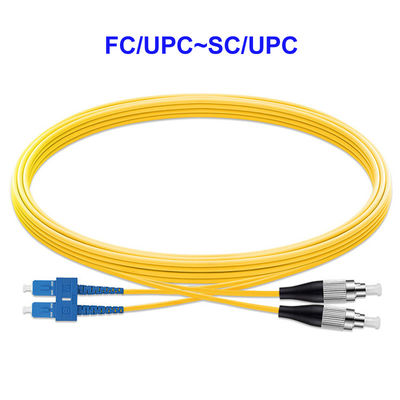

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 0

Prodcuct Parameters
Interface model:SC/UPC~FC/UPC Mode:single-mode
Insertion loss:≤0.3dB Number of cores:DX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm



Offer OEM/ODM Service

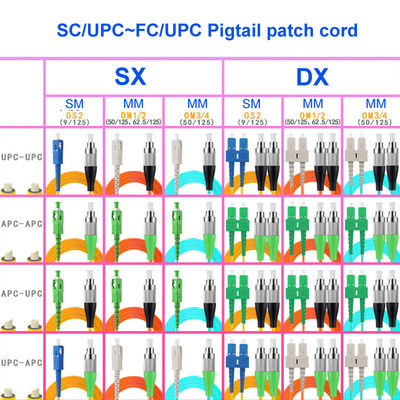

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 1
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours

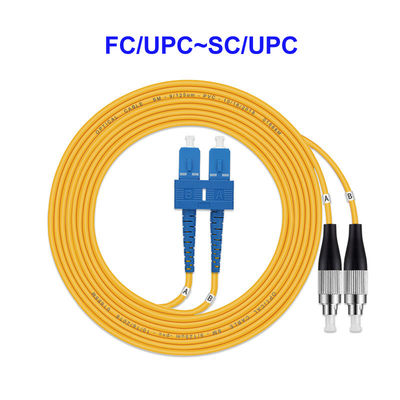

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 2

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 3

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 4

FC UPC SC UPC Single Mode Fiber Optic Cable 2 Core 55dB Return Loss 5
