2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector
2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector

Large Image :  2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector

Product Details:
Place of Origin: China
Model Number: FC/UPC~FC/UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Professional Packing+Carton
Delivery Time: 2-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000pcs/day
Detailed Product Description
Product Name: Fiber Optic Patch Cord Model No.: FC/UPC~FC/UPC
Colour: Orange Type: Multimode/Duplex
Insertion Loss: ≤0.3dB Return Loss: ≥35dB
Product Status: Stock Warranty: 1 Year
High Light:

Multimode Duplex Fiber Optic Cable

,

Duplex Fiber Optic Cable FC UPC

,

2 Core Fiber Cable FC UPC

FC/UPC~FC/UPC FC Connectors Multimode Duplex 2 Core Fiber Optic Cable Jumper OM1/2 Patch Cord





Parameters

Interface model:FC/UPC~FC/UPC Mode:Multi-mode
Insertion loss:≤0.3dB Number of cores:DX
Return loss:≥35dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OM1(default),OM2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:850nm~1300nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default),3.0mm
Minimum bending radius:38mm Optical fiber specifications:50/125µm,62.5/125µm





Product Image

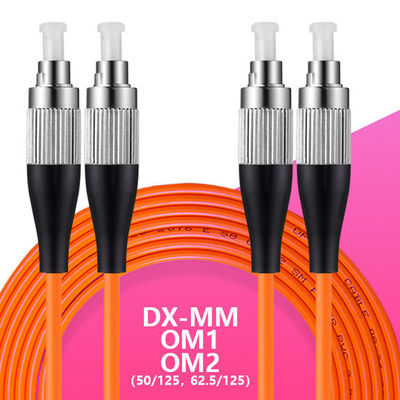

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 0

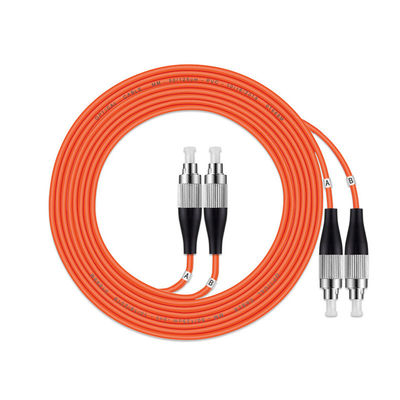

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 1





OEM/ODM Service

Offer OEM/ODM Service

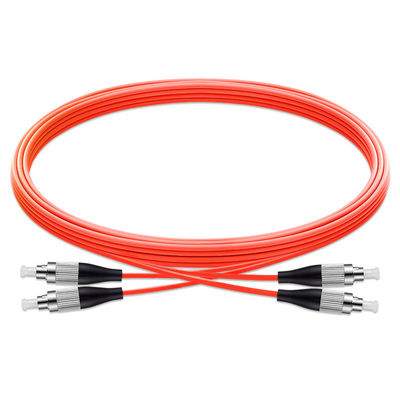

    2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 2
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25℃to +70℃ 2cycles <0.2dB <0.2dB
High temperature test +80℃,2hours
Low temperature test -40℃,2hours
Warm test +40℃90~95%RH,2hours





FAQ

  • Q: Can I get any discount?
    A: Yes, price could be negotiated based on the quantity.

  • Q: What is the lead time?
    A: Normally we will send the goods within 2-3 working days after received payment.

  • Q: Can you send to my forwarder?
    A: Yes sure, no problem.

  • Q: How do you ship the goods?
    A: We usually ship by DHL,UPS,FedEx or TNT.

  • Q: What is your warranty period?
    A: We offer warranty 1 year for all new products. Generally speaking, there are not exist quality problems with our strictly quality
    supervision.



Our Services & Guarantee
1. Brand new.
2. OEM/ODM is available.
3. 100% through quality test and aging test.
4. Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 3

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 4
2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector 5
