2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen
2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen

Large Image :  2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen

Product Details:
Place of Origin: China
Brand Name: Factory Supplying OEM/ODM
Certification: CE
Model Number: SC/APC~SC/UPC OS2(9/125µm)
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000Pieces per Day
Detailed Product Description
Model: SC/APC~SC/UPC Mode/Cores: Multi-mode/ Dual Core
Length: 1M-100M Customizable OEM/ODM: YES
Shipping: TNT,DHL,UPS,FEDEX Or EMS Product Name: Optical Fiber Jumper
High Light:

2 Core Multimode Fiber Optic Cable

,

Multimode Fiber Optic Cable SC APC

,

SC APC Cable



Cusomizable SC/APC~SC/UPC OS2(9/125µm) Multi-mode 2 core Fiber optic patch cord carrier-grade fiber optic cable for LAN



Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

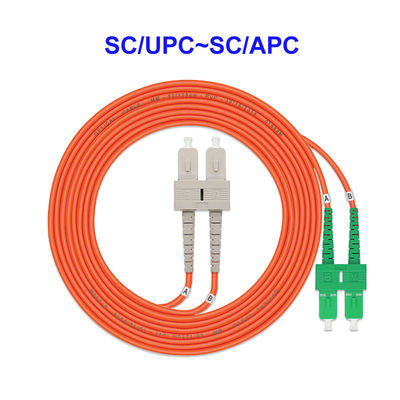

Product Picture:

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 0

Quick Specs:

Prodcuct Parameters
Interface model:SC/APC~SC/UPC Mode:Multi-mode
Insertion loss:≤0.3dB Number of cores:DX
Return loss:≥35dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40to +85
Repeatability:≤0.1dB Fiber type:OM1(default), OM2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:850nm~1300nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default),3.0mm
Minimum bending radius:38mm Optical fiber specifications:50/125µm(default),62.5/125µm



Product Profile:

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 1



Offer OEM/ODM Service:



Offer OEM/ODM Service
2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 2
1 Connector A SC FC LC ST ...
2 Grinding type A PC,UPC,APC
3 Connector B SC FC LC ST ...
4 Grinding type B PC,UPC,APC
5 Fiber diameter 0.9MM,2.0MM,3.0MM...
6 Fiber length 1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7 Outer sheath material PVC,LSZH,OFNP
8 Transmission mode SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
OM3,MM50/125-OM4...
9 Number of working cores SX, DX
10 Fiber type G652D,G657A1,G657A2...



Item Test Conditions SM MM
Optical properties Insertion loss upc SM:1310-1550nm ≤0.2dB ≤0.3dB
MM:850-1300nm
apc 1310-1550nm ≤0.3dB
Return loss upc SM:1310-1550nm ≥55dB ≥35dB
MM:850-1300nm
apc 1310-1550nm ≥65dB
Mechanical properties Impact test Height 1.8,8times <0.1dB <0.1dB
Vibration test 10~60HZ,1mmFull amplitude
Plug life ≥1000times
tensile strength >100N
Pressure test 45kg
Environmental characteristics High and low temperature cycle test -25to +70 2cycles <0.2dB <0.2dB
High temperature test +80,2hours
Low temperature test -40,2hours
Warm test +4090~95%RH,2hours



2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 3

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 4

Product connector introduction:

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 5

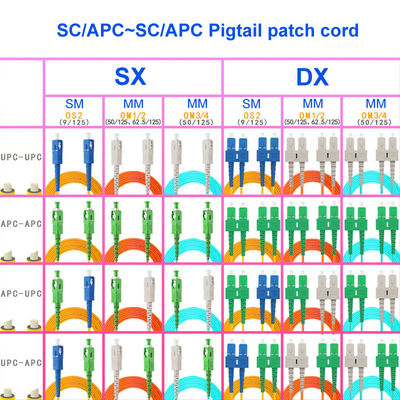

Common Connectors:

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 6



About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.

2 Core Multimode Fiber Optic Cable SC APC To SC UPC Zero Halogen 7
