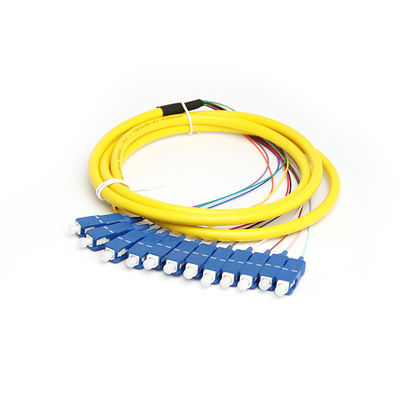

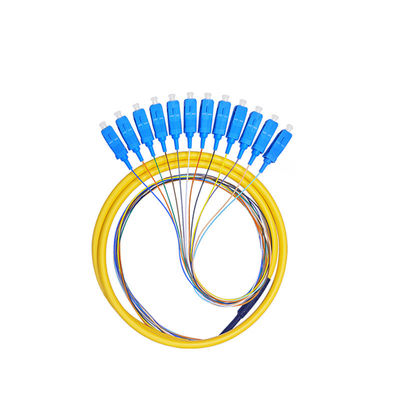

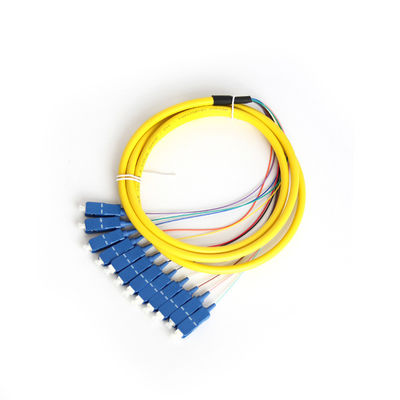

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D
Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D

Large Image :  Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard Packing
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/week
Detailed Product Description
Product Name: 12-core Bundle Pigtail Optical Cable Outer Diameter: 3mm
Interchangeability: ≤0.2dB Test Wavelength: 1310nm~1550nm

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D



Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 0



Prodcuct Parameters
Interface model:SC- Product Name:12-core bundle pigtail
Operating temperature:'-40to +85 Optical cable outer diameter:3mm
Interchangeability:≤0.2dB Fiber attenuation:1dB
Mating times:≥1000times Ferrule type:Class A ceramic ferrule
Test wavelength:1310nm~1550nm Tensile strength:70N
Tensile strength:≥200N Vibration test:0.1dB



OEM/ODM Accepted

List No. Item Model Test requirements SM MM
PC UPC APC PC UPC
1 IL LC/SC/FC/ST/MU/E2000 (Connect with standard plug and standard adapter)
100%test
≤0.3 ≤0.3 ≤0.35 ≤0.3 ≤0.3
2 RL LC/SC/FC/ST/MU/E2000 (Connect with standard plug and standard adapter)
10% sampling rate
≥50dB ≥50dB ≥60dB ≥25dB
Field connector, Cold splice (Connect with standard plug and standard adapter) Field connector:Embedded:UPC≥40dB,APC≥50dB
Hot melt type:UPC≥50dB,APC≥60dB
Cold splice:≥40dB
3 3D pass rate LC/SC/FC/ST/MU/E2000 Physical inspection ≥85%
4 End face standard LC/SC/FC/ST/MU/E2000 Physical inspection No defects in area A
Allow zone B ≤1μm scratches, ≤2μm spots, and the total number of scratches plus spots is less than 5.
Allow C zone ≤2μm scratches, ≤2μm spots, unlimited number, ≤3μm aprons
No defects in area A
Allow zone B ≤2μm scratches, ≤3μm spots, and the total number of scratches plus spots is less than 5.
Allow C zone ≤3μm scratches, ≤3μm spots, unlimited number, ≤5μm aprons
5 Appearance requirements Field connectors, cold spice, adapters, fiber optic connectors Visual inspection (refer to swatches and sealing samples) Product appearance and corresponding design, manufacturing requirements are everywhere: the appearance should be smooth, clean, free of oil, burrs, no scars and cracks, bright color, good consistency, and the components must be tight and flat; the appearance of the optical cable should be smooth and bright. No impurity, no damage, clear printing, color conforms to product requirements
6 Material requirements adapters Physical inspection The adaptor should use ceramic sleeves, the outer shell of the adaptor and other plastic parts should be flame-retardant, and the metal material should use HPb59-1 copper
7 Tensile test {pigtail (cable) or connector with fiber below Φ1.0mm is not applicable, adapter is not applicable} MTP/MPO Test conditions: A) Load: nN: B) Load time: 10 minutes: C) Load rate: 50N/min<rate<250N/minute; D) Distance from the point of load to the plug: L=22~28CM.
Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.1dB (MU<0.1dB, MTP/MPO<0.3dB) Return loss change <5dB
≥50
FC/SC/E2000 ≥50
MU/LC ≥70
  LC ≥90
Leather cable ≥50
Hot melt type ≥40(Leather cable, 2.0 soft optical cable)
≥50(3.0 soft optical cable)
Embedded type ≥30(Leather cable, 2.0 soft optical cable)
≥50(3.0 soft optical cable)
Cold splice ≥4(0.125,0.25 optic fiber)
≥10N(0.9 optical cable)
≥30N(Leather cable)
8 Tensile strength of adapter locking mechanism SC Test conditions: A) Load: nN: B) Load time: 10 minutes (MU load 1 minute); C) Load rate: 50N/minute; <speed<250N/minute; D) Distance from the point of load to the plug: L =22~28cm.
Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.2dB, Return loss change <5dB
≥50
MPO
LC ≥80
MU

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 1

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 2

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 3

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 4

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 5

Single-Mode 12-Core Sc Fiber Optic Pigtail APC/UPC Bundled Pigtail G652D 6
