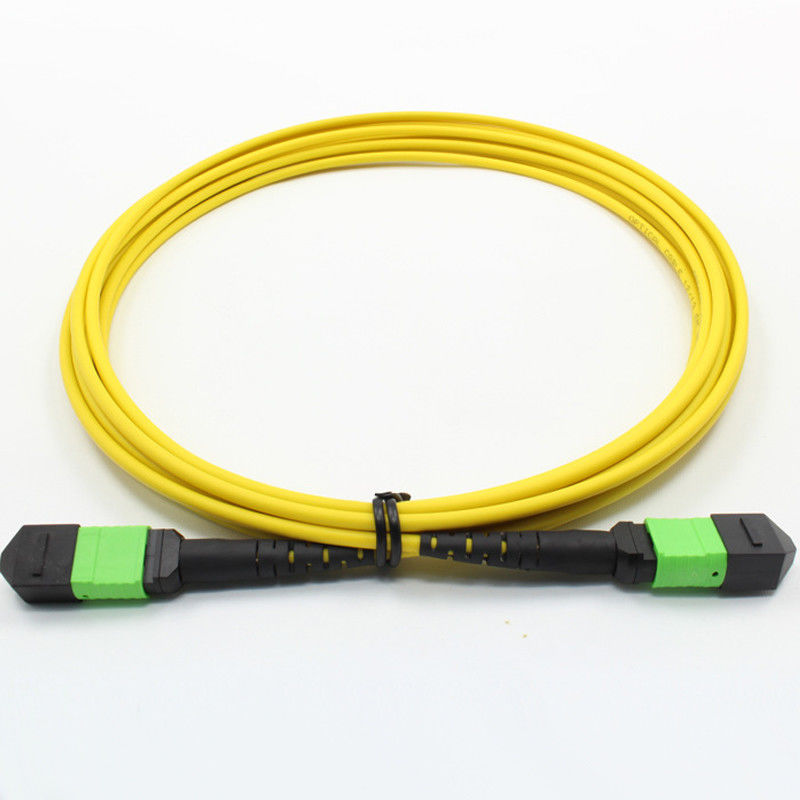

Single Mode 2m MPO Optical Cable 12 Core Bundled 120N

Single Mode 2m MPO Optical Cable 12 Core Bundled 120N
Single Mode 2m MPO Optical Cable 12 Core Bundled 120N Single Mode 2m MPO Optical Cable 12 Core Bundled 120N Single Mode 2m MPO Optical Cable 12 Core Bundled 120N Single Mode 2m MPO Optical Cable 12 Core Bundled 120N

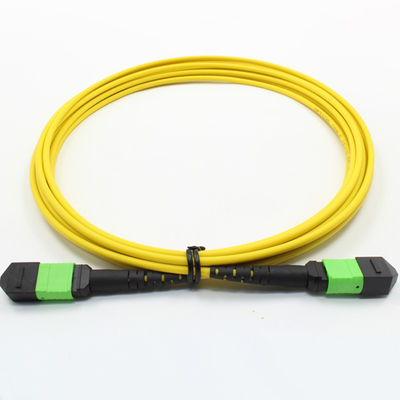

Large Image :  Single Mode 2m MPO Optical Cable 12 Core Bundled 120N

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 per week
Detailed Product Description
Applicable Connector Type: MPO,MTP Applicable Optical Cable Type: MPO: Ribbon Or Bundle Optical Cable
Repeatability: ≤0.10dB Exchangeability: ≤0.20dB
Durability: Typical Change Value After 500 Insertions And Removals≤0.20dB Vertical Pull: ≥120N (except 0.9mm Optical Cable) Or Customer Requirements
High Light:

Single Mode MPO Optical Cable

,

2m MPO Optical Cable

,

120N Fiber Optic Patch Cord

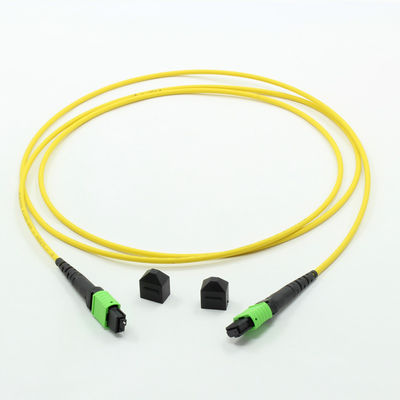

MPO-MPO fiber optic patch cord 12-core bundled single-mode 2 meter optical cable MPO single multi-mode customization







Brief introduction

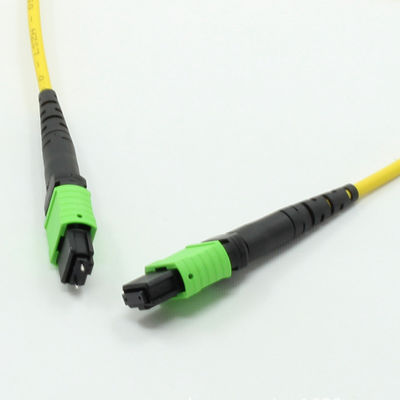

MPO (Multi-fiber Push On) is collectively referred to as MT series connectors. The ferrules of the MT series use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face for precise connection with the guide pin (also called PIN pin) , MPO can have 2~12 core designs, up to 24 cores, and 12 core connectors are currently the most used. The compact design of MPO makes it have a large number of cores and small size. It is widely used in the interconnection applications of FTTX, 40/100G SFP, SFP+ and other transceiver equipment in the environment where high-density integrated optical fiber lines are required during the wiring process. Our company can provide a variety of transfer and non-transfer MPO jumpers. There are many types of MPO transfers, including ribbon and bundle. Through the splitter (round or square), it can be transferred out of 2~24 core 0.9 or 2.0 Optical cable branch, the type of connector is specified by the customer, and the length and other requirements are left to the customer's choice. All products comply with Telcordia-GR-326, IEC standards and Rohs requirements.



Name MPO Bundle 12-core single-mode fiber jumper
Advantages There are many kinds of MPO methods, and drawings can be provided quickly, MTP, high-quality ferrules, accurate PIN pin alignment, low insertion loss, RJ-45 structure design, and Rohs and Telcordia GR-326-CORE standards can be provided
Applications Local area network wiring between different buildings of the enterprise, optical link interconnection in optical active equipment, wiring in communication bases, wiring in wiring boxes, optical signal connection in computer rooms of residential quarters, industrial areas, and computer rooms of commercial buildings, and building dense wiring system , Optical fiber communication system, cable television network, telecommunications network, metropolitan area network, wide area network, FTTx.
Applicable connector type MPO,MTP
Fiber type Single mode Multimode (PC)
Working wavelength range 1250~1650nm 850nm, 1300nm
Test wavelength 1310nm, 1550nm 850nm, 1300nm
End grinding type MPO:APCMT-RJ:PC PC
Insertion loss MPO: typical value ≤0.50dB, maximum value ≤0.70dB MPO: typical value ≤0.40dB, maximum value ≤0.50dB
Return loss APC≥50dB /
Applicable optical cable type MPO: Ribbon or Bundle Optical Cable
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability Typical change value after 500 insertions and removals≤0.20dB
Vertical pull ≥120N (except 0.9mm optical cable) or customer requirements
Operating temperature -20℃to +70℃
Storage temperature -40℃to +85℃



Order options
Fiber type Optical cable type Connector PIN Outer diameter of tail sleeve Tail sleeve color Ferrule grinding type Length
SM: 9/125μm Single cable dual core 3.0 optical cable Male head 2.0mm Black PC Customer request
MM: 50/125μm Double core Female head 3.0mm   APC
MM: 62.5/125μm Ribbon cable   With fiber tail sleeve
MM: OM3 Bundle Optical Cable

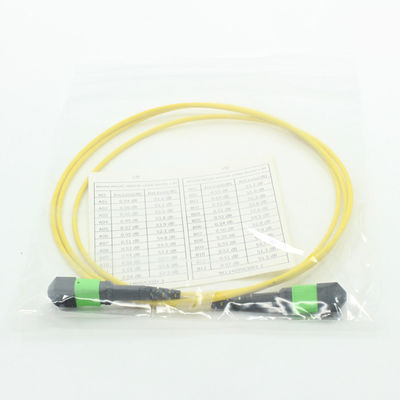

Single Mode 2m MPO Optical Cable 12 Core Bundled 120N 0



How to choose the suitable patch cord?

Type Diameter(um) Fiber Type 100BASE-FX 100BASE-SX 100BASE-LX 10GBASE 40GBASE SR4 100GBASE SR4
OM1 62.5/125 Multi-mode 2000M 275m 550m 33m not support not support
OM2 50/125 Multi-mode 2000M 500m 550m 82m not support not support
OM3 50/125 Multi-mode 2000M 500m 550m 300m 100m(SR4) 100m(SR4)
OM4 50/125 Multi-mode 2000M 500m 550m 400m 150m(SR4) 150m(SR4)
Single mode OS2 9/125 Multi-mode 2000M 5km(1310nm) 5km(1310nm) 10km(1310nm) not support not support
PS: The difference between fiber type multimode OM3 and OM4
1. OM4 is developed for VSCEL laser transmission, and supports 10G/S connection transmission distance up to 500M (OM3 is 300M).
2. The effective bandwidth of OM4 mode is more than one more than OM3
3. OM4 jumper is 4700MHz.km, OM3 is only 2000MHz.km.





How to choose PVC, LSZH and OFNP correctly?
Fiber patch cords are currently widely used indoors, such as buildings, work, office parks, campuses, and so on.


So how to choose PVC, LSZH or OFNP outer sheath depends on the environment in which the optical fiber is selected.
  PVC outer covering has the characteristics of anti-oxidation and anti-degradation, and is usually used for horizontal operation of wiring center. Good mechanical properties and moderate price.
  The outer cover of LSZH has a special flame-retardant coating, and has excellent waterproof safety performance of low smoke, low toxicity and low corrosion. It is usually used for flat ground connection between buildings.
  OFNP is the highest grade material and is usually installed in the air return pressurization system used in ventilation ducts or air handling equipment to comply with NFPA fire safety regulations.
